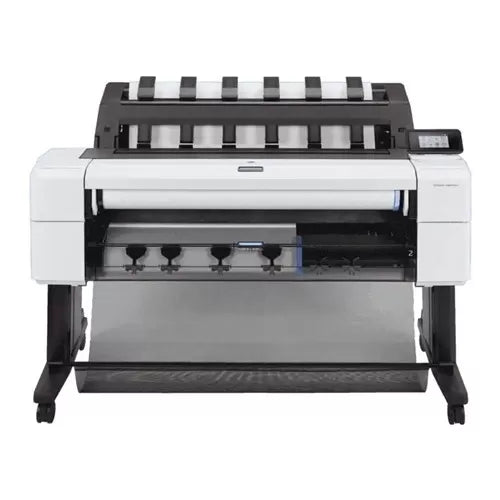

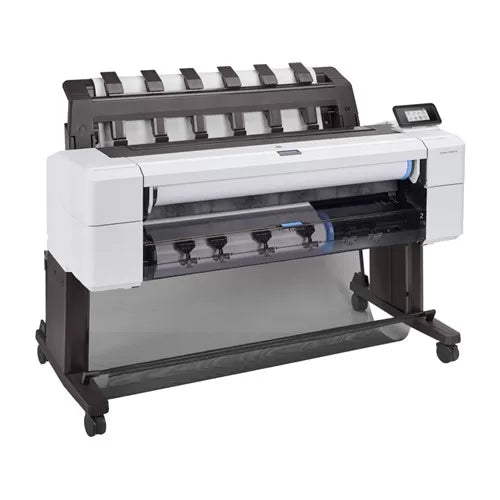

HP DesignJet T1600 36" Large Format Printer (3EK10A)

Professional 36-inch CAD & Technical Printer – Fast, Precise and Secure

The HP DesignJet T1600 36-inch Large Format Printer is a high-performance professional printer engineered for architects, engineers, construction professionals, designers and CAD/GIS workgroups that demand fast turnaround, exceptional line accuracy and reliable large-format output.

With a maximum print width of 914 mm (36"), the DesignJet T1600 handles drawings and documents from A4 through to A0 size. Combining print speeds of up to 180 A1 prints per hour, a six-colour HP ink system, integrated output stacking and powerful file processing, the T1600 is designed to keep busy technical environments productive.

Whether you're producing architectural plans, engineering drawings, maps, presentations, renders or detailed technical documents, the HP DesignJet T1600 delivers sharp lines, clear text and professional colour output.

Key Features

High-Speed A0 / 36-inch Printing

Keep projects moving with impressive large-format printing performance. The HP DesignJet T1600 can produce an A1-size print in as little as 19.3 seconds, with maximum productivity of up to 180 A1 prints per hour.

This makes the T1600 particularly well suited to busy architectural, engineering, construction and reprographic environments where large drawing sets need to be produced quickly.

Outstanding Line Detail & Print Quality

Produce highly detailed technical drawings with print resolution of up to 2400 × 1200 optimised dpi.

With line accuracy of ±0.1%, the DesignJet T1600 is designed for applications where fine lines, small text and accurate technical detail matter.

Ideal applications include:

• Architectural plans and construction drawings
• CAD drawings
• Engineering plans
• GIS and mapping
• Line drawings
• Presentations
• Renderings and visualisations
• Orthophotos
• Technical diagrams
• Colour plans and graphics

Six-Colour HP Ink System

The HP DesignJet T1600 uses a six-colour ink system consisting of:

• Cyan
• Magenta
• Yellow
• Gray
• Photo Black
• Matte Black

Cyan, Magenta, Yellow, Gray and Photo Black use dye-based inks, while Matte Black uses pigment-based ink.

The addition of Gray and separate Photo Black and Matte Black inks helps the printer produce detailed technical drawings, smooth grayscale output and strong black lines across a wide variety of media.

Large 130 ml & 300 ml Ink Cartridge Options

The T1600 supports both 130 ml and 300 ml HP ink cartridges, allowing businesses to select cartridge capacity according to their print volume.

Higher-capacity 300 ml cartridges are particularly useful for busy production environments, helping reduce the frequency of cartridge replacement during large print runs.

Integrated Output Stacker

Large drawing sets can quickly become difficult to manage on conventional large-format printers. The DesignJet T1600 incorporates an integrated output stacker to help keep completed prints organised.

Finished prints are collected neatly instead of simply dropping into a basket, helping operators manage multi-page CAD and technical print jobs more efficiently.

The printer also incorporates a media bin and automatic horizontal cutter.

Easy Front-Loading Media

The automatic front-loading roll system makes changing media straightforward and helps reduce the space required around the printer.

The standard HP DesignJet T1600 supports one roll, with roll media widths from 279 mm up to 914 mm and a maximum roll diameter of 140 mm.

Sheet-fed media is also supported for additional flexibility.

Wide Range of Compatible Media

The HP DesignJet T1600 isn't limited to standard CAD bond paper. Its versatile media handling allows businesses to produce a broad range of technical and presentation applications.

Supported media includes:

• Plain and bond paper
• Coated paper
• Heavyweight coated paper
• Super heavyweight matte paper
• Coloured paper
• Natural tracing paper
• Translucent bond
• Vellum
• Clear and matte film
• Polyester film
• Satin photo paper
• Gloss photo paper
• Semi-gloss photo paper
• Matte photo paper
• High-gloss photo paper
• Backlit media
• Polypropylene
• Self-adhesive media
• Vinyl

Recommended media weights range from approximately 60 to 328 gsm, with media thickness up to approximately 0.5 mm.

Powerful File Processing

Large CAD drawings, maps and detailed technical files can place significant demands on a printer's processing system.

The HP DesignJet T1600 provides 128 GB of file-processing memory together with a 500 GB self-encrypting internal drive, helping the printer process complex print jobs efficiently while supporting secure professional workflows.

Designed with Security in Mind

For architectural practices, engineering firms and corporate environments, drawings and project documents can contain confidential information.

The DesignJet T1600 incorporates enterprise-oriented security capabilities designed to help protect the printer, network and stored data.

Features include support for technologies and protocols such as:

• Self-encrypting internal storage
• Secure network communication
• IPsec
• SSL/TLS
• 802.1X authentication
• SNMPv3
• SMBv3
• Embedded Web Server security
• HP Web Jetadmin
• HP JetAdvantage Security Manager

These capabilities make the T1600 suitable for organisations where printer and network security are important considerations.

Easy Printing from Computers & Mobile Devices

The HP DesignJet T1600 supports a variety of printing workflows, making it easier for different users within an organisation to submit jobs.

Printing options include:

• Network printing
• Direct printing from USB flash drive
• Printing from network shared folders
• HP Click
• HP Smart
• HP ePrint
• Apple AirPrint
• Windows printing
• macOS printing
• iOS and Android mobile printing
• Chrome OS printing

Standard network connectivity includes Gigabit Ethernet, with Wi-Fi available using an optional compatible HP Jetdirect accessory.

Technical Specifications

What's Included

The HP DesignJet T1600 package includes:

• HP DesignJet T1600 36-inch Printer
• Printer stand
• Media bin
• Spindle
• Printhead
• Introductory ink cartridges
• User documentation
• Power cord

Ideal For

The HP DesignJet T1600 is an excellent large-format printing solution for:

Architectural Practices
Produce detailed floor plans, elevations, construction drawings and presentation graphics.

Engineering Firms
Print accurate engineering drawings, schematics, infrastructure plans and technical documentation.

Construction Companies
Quickly produce large drawing sets and plans for offices, project managers and construction sites.

Surveyors & GIS Professionals
Produce maps, GIS drawings, orthophotos and detailed geographic information.

Government & Corporate Departments
A strong option for centralised technical printing environments requiring productivity, network connectivity and security.

Reprographic & Print Businesses
Handle customer CAD drawings, plans, technical documents and short-run large-format printing efficiently.
