Description

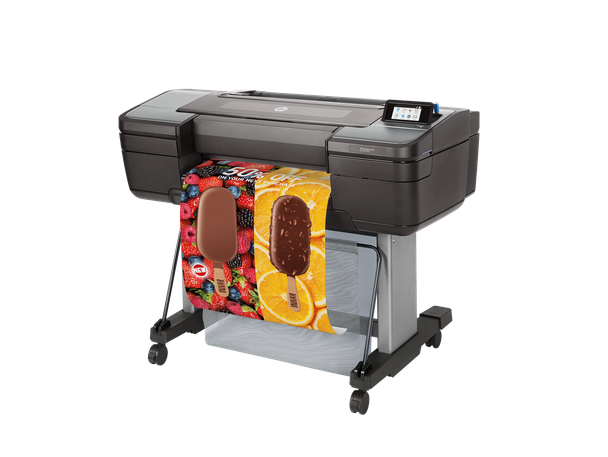

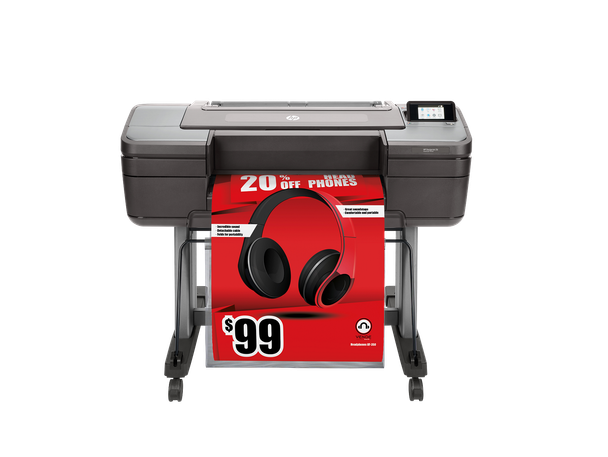

HP DesignJet Z6 24-inch PostScript Large Format Printer (T8W15A)
Professional 24-inch Graphics & Technical Printer – Outstanding Detail, Colour Accuracy and Powerful PDF Processing
The HP DesignJet Z6 24-inch PostScript Printer is a professional large-format printer designed for photographers, graphic designers, GIS professionals, architects, engineers, retailers and print service providers who demand outstanding image quality, precise detail and dependable colour reproduction.
With a maximum print width of 610 mm (24 inches), the DesignJet Z6 combines HP's professional six-colour ink system, high-resolution printing and integrated Adobe PostScript/PDF processing in a compact large-format platform.
The Z6 is particularly well suited to applications where fine detail is critical. From high-resolution photographs and presentation graphics to complex GIS maps and technical drawings, it is engineered to reproduce small details, smooth colour transitions and sharp lines with professional results.
Its compact 24-inch format makes the Z6 an excellent choice for studios, offices and print environments that require professional large-format quality without the footprint of a 44-inch production printer.
Key Features
Professional 24-inch / 610 mm Large Format Printing
The HP DesignJet Z6 supports media up to 610 mm / 24 inches wide, providing a versatile format for photographic, graphics and technical applications.
The printer is ideal for producing:
- Professional photography
- Fine photographic prints
- Posters
- Presentation graphics
- Retail graphics
- Point-of-sale displays
- GIS maps
- Technical drawings
- Architectural presentations
- Engineering graphics
- Renderings
- Line drawings
- Maps and plans
- Marketing graphics
- Exhibition and display graphics
Its combination of photographic image quality and technical precision makes the Z6 significantly more versatile than a conventional CAD-only plotter.
HP Pixel Control for Outstanding Image Quality
At the heart of the HP DesignJet Z6 is HP Pixel Control, HP's advanced imaging pipeline designed to provide precise control over individual colour combinations.
HP Pixel Control helps produce smooth colour transitions, detailed images and accurate output across a wide range of professional applications.
This is particularly important when reproducing:
- Photographs
- Skin tones
- Gradients
- Shadows
- Detailed landscapes
- Architectural renders
- Colour maps
- Fine graphics
The result is professional output with excellent detail and smooth tonal transitions.
Six HP Vivid Photo Inks
The HP DesignJet Z6 uses a six-colour HP Vivid Photo Ink system engineered for professional graphics and photographic output.
The ink set consists of:
- Cyan
- Magenta
- Yellow
- Chromatic Red
- Photo Black
- Matte Black
The inclusion of Chromatic Red expands the printer's colour capability, helping produce vibrant reds and strong colour reproduction across graphics, photography and presentation applications.
Separate Photo Black and Matte Black inks optimise black reproduction across photographic and matte media.
No Need to Swap Black Inks
The HP DesignJet Z6 incorporates separate channels for Photo Black and Matte Black, eliminating the inconvenience of manually switching between black inks when changing between glossy/photo and matte media.
This provides several advantages:
- Faster media changes
- Reduced ink waste
- Less operator intervention
- Greater workflow efficiency
- Optimised black density across different media
For businesses regularly switching between photo paper and coated or matte media, this can provide a significant everyday productivity benefit.
Up to 2400 × 1200 Optimised dpi
The HP DesignJet Z6 delivers print resolution of up to 2400 × 1200 optimised dpi, allowing it to reproduce exceptionally fine image and technical detail.
This makes it particularly suitable for applications containing:
- Fine photographic detail
- Small text
- Fine lines
- Map labels
- Architectural details
- Complex GIS information
- High-resolution raster images
- Detailed graphics
Whether printing a photograph or a technical map, the Z6 is designed to preserve the details that matter.
Designed to Handle Even the Most Complex Files
Professional large-format files can be extremely demanding to process.
High-resolution photography, layered PDFs, GIS maps and complex graphics may contain large amounts of raster and vector information.
The HP DesignJet Z6 is equipped with powerful onboard processing to help handle these demanding jobs efficiently.
It features:
128 GB virtual memory
and
500 GB self-encrypting internal storage
This allows the printer to process complex files internally and helps prevent large jobs from creating unnecessary workflow bottlenecks.
Adobe PostScript 3 & Adobe PDF Print Engine
The HP DesignJet Z6 24-inch includes professional Adobe PostScript 3 and Adobe PDF Print Engine technology.
This is particularly valuable for graphic design, photography, GIS and professional print workflows where PDF files may contain:
- Embedded fonts
- Transparency
- Vector graphics
- High-resolution images
- Layers
- Complex colour information
- Mixed raster and vector elements
Native Adobe processing helps provide reliable reproduction of sophisticated PDF files and reduces the risk of unexpected output when handling complex documents.
For print businesses receiving customer-supplied PDFs from different applications, this is an important advantage.
Excellent for GIS & Detailed Maps
Although the DesignJet Z6 is an excellent graphics and photographic printer, it is also particularly strong for GIS and mapping applications.
GIS maps often combine fine text, detailed lines, raster imagery and numerous colours in a single file.
The Z6's high-resolution print system, professional colour capability and powerful file processing make it ideal for producing:
- Topographic maps
- Cadastral maps
- Environmental maps
- Geological maps
- Mining maps
- Utility maps
- Urban planning maps
- Satellite imagery
- Aerial photography
- Colour-coded geographic information
Fine details remain clear while the six-colour ink system helps differentiate complex map information.
Professional Photographic Printing
The Z6 is also an excellent choice for professional photographic output.
HP Vivid Photo Inks and HP Pixel Control combine to deliver detailed photographic prints with smooth tonal transitions and strong colour reproduction.
Suitable applications include:
- Portrait photography
- Wedding photography
- Landscape photography
- Commercial photography
- Architectural photography
- Exhibition prints
- Portfolio prints
- Studio proofs
- Photo enlargements
The 24-inch width makes it particularly attractive to photographers and studios wanting professional large-format capability in a relatively compact printer.
Professional Graphics & Posters
The HP DesignJet Z6 can also serve as a versatile in-house graphics production printer.
Businesses can produce:
- Promotional posters
- Retail graphics
- Marketing materials
- Presentation boards
- Point-of-sale displays
- Exhibition graphics
- Event posters
- Educational displays
- Corporate presentations
Bringing this type of printing in-house can reduce outsourcing costs and provide much faster turnaround for time-sensitive graphics.
Borderless Printing
For supported media sizes and applications, the HP DesignJet Z6 provides borderless printing capability, allowing graphics and photographs to be produced without unwanted white margins.
This is particularly useful for:
- Photographic prints
- Posters
- Presentation graphics
- Display materials
- Marketing graphics
It can also reduce the amount of manual trimming required after printing.
Wide Range of Compatible Media
The HP DesignJet Z6 supports a broad range of professional large-format media.
Suitable media categories include:
- Photo paper
- Gloss photo paper
- Satin photo paper
- Semi-gloss photo paper
- Matte photo paper
- Fine art media
- Coated paper
- Heavyweight coated paper
- Super heavyweight matte paper
- Bond paper
- Backlit media
- Polypropylene
- Self-adhesive media
- Banner and display media
- Technical papers
This versatility allows a single Z6 to support photographic, graphics, presentation and technical printing applications.
Automatic Horizontal Cutter
The printer incorporates an automatic horizontal cutter for compatible roll media.
Once a print has been completed, the printer can automatically cut it from the roll, simplifying production and reducing manual finishing.
This is particularly convenient when producing multiple photographs, posters, maps or presentation graphics.
Easy Printing with HP Click
HP Click simplifies large-format printing by allowing users to submit common document and image files through an intuitive interface.
Users can preview jobs before printing, helping identify layout problems before consuming media and ink.
HP Click can help:
- Simplify large-format printing
- Preview jobs before production
- Submit multiple files
- Reduce incorrect prints
- Reduce wasted media
- Improve workflow for occasional users
This makes the Z6 practical for shared environments where not every user is a large-format printing specialist.
Professional Colour Management
Accurate and repeatable colour is essential for photography, graphics and professional presentation work.
The HP DesignJet Z6 incorporates professional colour management capabilities designed to provide consistent output across supported HP media.
This helps users achieve dependable colour from one job to the next, which is particularly important for:
- Brand graphics
- Photography
- Client presentations
- Proofing
- Maps
- Repeat print jobs
Consistent colour helps reduce reprints and provides greater confidence when producing customer-facing work.
Built-In Spectrophotometer
The HP DesignJet Z6 incorporates an HP embedded spectrophotometer for professional colour management.
A spectrophotometer measures printed colour, allowing the printer to calibrate and characterise supported media more accurately.
This provides an important advantage for colour-critical environments because it helps maintain predictable and repeatable colour output.
For photographers, designers and print professionals, built-in colour measurement reduces reliance on separate external colour-calibration equipment for routine printer calibration.
Secure Professional Printing
The HP DesignJet Z6 is designed for networked professional environments and incorporates security features to help protect sensitive files and data.
Security capabilities include technologies such as:
- 500 GB self-encrypting internal drive
- Secure network communication
- IPsec
- SSL/TLS
- 802.1X authentication
- SNMPv3
- Secure Embedded Web Server
- HP Web Jetadmin
- HP JetAdvantage Security Manager
These capabilities make the Z6 suitable not only for creative studios but also for corporate, government, GIS and professional technical environments.
Network, USB & Mobile Printing
The HP DesignJet Z6 supports flexible professional printing workflows.
Connectivity and printing options include:
- Gigabit Ethernet
- Direct USB printing
- HP Click
- Windows
- macOS
- Apple AirPrint
- Mobile printing
- Network-based printing workflows
This allows the Z6 to function as a central professional printer shared between multiple users.
Technical Specifications
| Specification | HP DesignJet Z6 24-inch PostScript Printer |
|---|---|
| Product Number | T8W15A |
| Printer Type | Professional Graphics & Technical Large Format Printer |
| Functions | |
| Maximum Print Width | 610 mm / 24 inches |
| Print Technology | HP Thermal Inkjet |
| Maximum Print Resolution | Up to 2400 × 1200 optimised dpi |
| Ink System | 6 colours |
| Ink Family | HP Vivid Photo Inks |
| Ink Colours | Cyan, Magenta, Yellow, Chromatic Red, Photo Black, Matte Black |
| Black Ink Switching | No manual switching required |
| Ink Cartridge Capacity | 300 ml |
| Printheads | 3 universal printheads |
| Adobe PostScript | Adobe PostScript 3 |
| PDF Processing | Adobe PDF Print Engine |
| Other Print Languages | HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4 |
| File-Processing Memory | 128 GB virtual |
| Internal Storage | 500 GB self-encrypting drive |
| Colour Technology | HP Pixel Control |
| Colour Measurement | HP embedded spectrophotometer |
| Roll Configuration | Single Roll |
| Maximum Roll Width | 610 mm / 24 inches |
| Maximum Roll Diameter | Approx. 135 mm |
| Sheet Feed | Yes |
| Borderless Printing | Supported on compatible media |
| Automatic Cutter | Yes |
| Standard Connectivity | Gigabit Ethernet |
| USB Printing | Supported |
| HP Click | Supported |
| Mobile Printing | Supported |
| Typical Applications | Photography, graphics, posters, GIS, maps, CAD and presentations |
HP DesignJet Z6 vs Technical CAD Plotters
The HP DesignJet Z6 differs from conventional DesignJet T-series CAD printers because it places greater emphasis on professional colour, photography and graphics while still retaining excellent technical printing capability.
| Feature | Typical CAD Plotter | HP DesignJet Z6 |
| Technical Drawings | ✓ | ✓ |
| GIS Maps | ✓ | Excellent |
| Professional Photography | Limited | Excellent |
| Graphics & Posters | Good | Excellent |
| Six-Colour Ink System | Model dependent | ✓ |
| Chromatic Red Ink | — | ✓ |
| HP Vivid Photo Inks | — | ✓ |
| HP Pixel Control | — | ✓ |
| Embedded Spectrophotometer | — | ✓ |
| Adobe PostScript 3 | Model dependent | ✓ |
| Adobe PDF Print Engine | Model dependent | ✓ |
| 2400 × 1200 dpi | Model dependent | ✓ |
