Description

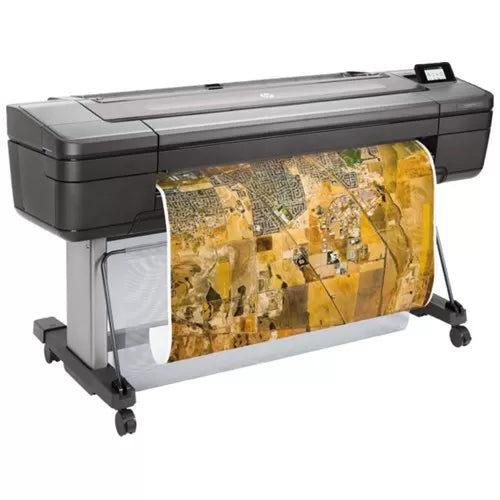

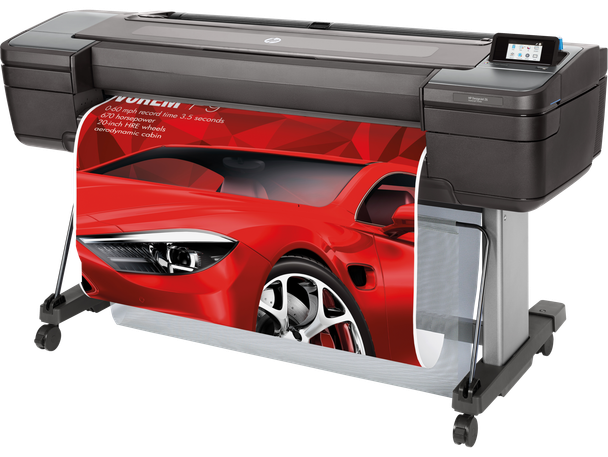

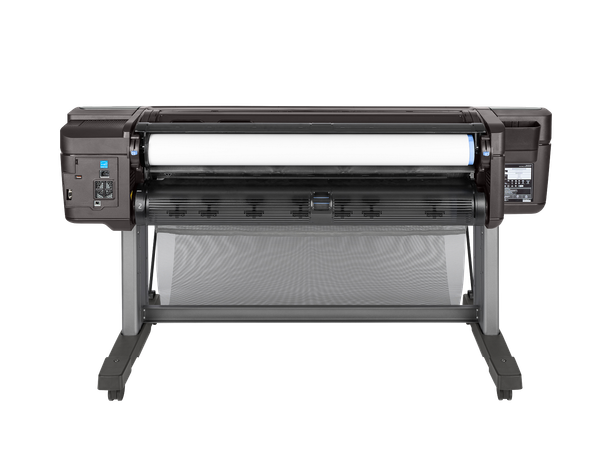

HP DesignJet Z6 44-inch PostScript Large Format Printer (T8W16A)
Professional 44-inch Graphics, Photography & GIS Printer – Exceptional Detail, Vibrant Colour and Powerful PostScript Processing
The HP DesignJet Z6 44-inch PostScript Large Format Printer is a professional graphics printer designed for businesses that demand outstanding image quality, precise detail, vibrant colour reproduction and reliable processing of complex large-format files.
With a maximum print width of 1118 mm (44 inches), the HP DesignJet Z6 is an excellent solution for professional photographers, graphic designers, GIS professionals, architects, engineers, retailers, corporate marketing departments and print service providers.
Unlike conventional technical plotters that focus primarily on CAD line drawings, the DesignJet Z6 combines technical precision with professional graphics capability. Its six-colour HP Vivid Photo Ink system, HP Pixel Control, high-definition printheads and Adobe PostScript 3 processing allow the printer to handle everything from detailed GIS maps and architectural renderings to professional photography, posters and high-impact presentation graphics.
With print resolution up to 2400 × 1200 optimised dpi, 300 ml pigment ink cartridges, powerful onboard file processing and a generous 44-inch print width, the HP DesignJet Z6 is built for professional environments where both detail and colour matter.
Key Features
Professional 44-inch / 1118 mm Large Format Printing
The HP DesignJet Z6 supports media up to 1118 mm / 44 inches wide, giving businesses considerably more flexibility than a conventional 24-inch graphics printer.
The larger format is ideal for applications including:
- Professional photography
- Posters
- Retail graphics
- Point-of-sale displays
- Presentation graphics
- GIS maps
- Satellite and aerial imagery
- Architectural renderings
- Technical drawings
- Engineering graphics
- Exhibition displays
- Marketing graphics
- Fine art reproductions
- Backlit graphics
- Signage
- Corporate presentations
The combination of wide-format capability and professional colour quality makes the Z6 an exceptionally versatile production printer.
Six HP Vivid Photo Inks
The HP DesignJet Z6 uses a professional six-colour HP Vivid Photo Ink system.
The ink colours are:
- Cyan
- Magenta
- Yellow
- Chromatic Red
- Photo Black
- Matte Black
All six colours use pigment-based ink technology, providing excellent image quality together with enhanced durability for professional graphics applications.
The inclusion of Chromatic Red helps the Z6 produce vibrant reds and strong colour reproduction, making it particularly effective for posters, retail graphics, maps and photographic applications.
Separate Photo Black and Matte Black inks optimise black reproduction across different media types without requiring users to manually swap black inks.
High-Definition HP Printheads
The HP DesignJet Z6 uses high-definition HP printheads designed to reproduce extremely fine details and high-contrast colour.
The printer incorporates three universal printheads, with a total of 12,672 nozzles across the six colours.
HP's dual-drop technology allows the printing system to produce different ink drop sizes, helping achieve fine detail and smooth tonal transitions without requiring additional light-colour inks.
This advanced printhead technology is particularly valuable for applications containing:
- Fine photographic detail
- Small text
- Thin lines
- Map labels
- Complex GIS data
- Architectural details
- Smooth gradients
- High-resolution graphics
HP Pixel Control
The HP DesignJet Z6 incorporates HP Pixel Control, an advanced imaging technology designed to control individual colour combinations with exceptional precision.
Pixel Control helps the printer produce smooth gradients and detailed colour transitions, even when handling challenging colour combinations.
This is especially beneficial for:
- Photography
- Architectural renderings
- Landscapes
- Skin tones
- Shadows and highlights
- GIS maps
- Colour gradients
- Presentation graphics
The result is smooth, detailed and professional large-format output across a wide variety of applications.
Up to 2400 × 1200 Optimised dpi
The HP DesignJet Z6 delivers print resolution of up to 2400 × 1200 optimised dpi, allowing extremely fine image and technical details to be reproduced clearly.
Whether you're producing a detailed map, a photographic print or a complex architectural rendering, the Z6 provides the resolution required for professional results.
The printer offers ±0.1% line accuracy, making it equally capable of handling technical applications where precise line reproduction is important.
Fast 44-inch Graphics Production
The HP DesignJet Z6 combines professional image quality with impressive production speed.
Maximum print speeds include:
Plain Media – Fast Mode: up to 80.5 m²/hr
Coated Media – Normal Mode: up to 18.8 m²/hr
Glossy Media – Best Mode: up to 9.7 m²/hr
This balance between speed and image quality makes the Z6 suitable for both individual premium prints and larger production runs.
Businesses can quickly produce posters, graphics, maps and presentation materials without sacrificing the professional quality expected from a dedicated graphics printer.
Adobe PostScript 3
The HP DesignJet Z6 includes integrated Adobe PostScript 3, providing professional processing of graphics and design files.
PostScript is particularly important in environments where files may contain:
- Vector graphics
- Embedded fonts
- Transparency
- Complex page layouts
- High-resolution raster images
- Mixed vector and raster content
- Professional graphic design elements
Built-in PostScript processing provides greater confidence when printing complex customer, designer and professional production files.
Adobe PDF Processing
The Z6 also provides professional Adobe PDF processing capability, making it an excellent choice for organisations that receive large and complex PDF files.
Complex PDF documents may contain multiple layers, fonts, transparency, vectors and high-resolution imagery.
The printer's powerful onboard processing helps manage these demanding files efficiently while maintaining the intended appearance of the original document.
This makes the Z6 particularly valuable for:
- Print service providers
- Graphic design studios
- Architectural practices
- GIS departments
- Corporate marketing departments
- Reprographic businesses
Excellent for Professional Photography
The HP DesignJet Z6 is an excellent solution for professional photographic printing.
Its combination of pigment-based HP Vivid Photo Inks, high-definition printheads, HP Pixel Control and 2400 × 1200 optimised dpi provides the detail and tonal control required for demanding photographic applications.
Ideal applications include:
- Portrait photography
- Wedding photography
- Landscape photography
- Architectural photography
- Commercial photography
- Exhibition prints
- Portfolio prints
- Studio enlargements
- Photographic displays
The 44-inch print width also enables photographers to produce significantly larger finished prints than a conventional 24-inch printer.
Outstanding GIS & Mapping Performance
The HP DesignJet Z6 is particularly well suited to GIS and mapping applications.
Modern GIS files can combine high-resolution raster imagery, detailed linework, small labels and numerous colours within a single document.
The Z6's high-definition printheads, HP Pixel Control and six-colour pigment ink system help ensure that small details remain clear and different colours can be easily distinguished.
Typical GIS applications include:
- Topographic maps
- Cadastral maps
- Utility maps
- Geological maps
- Mining maps
- Environmental mapping
- Urban planning
- Infrastructure maps
- Satellite imagery
- Aerial photography
- Colour-coded geographic information
The generous 44-inch / 1118 mm print width makes the Z6 especially useful for producing large, highly detailed maps.
Professional Posters & Retail Graphics
The Z6 is also an excellent in-house production solution for businesses producing high-impact promotional graphics.
Applications include:
- Retail posters
- Point-of-sale graphics
- Promotional signage
- Marketing posters
- Window graphics
- Presentation boards
- Exhibition graphics
- Event graphics
- Educational displays
- Corporate communications
Bringing these applications in-house can provide faster turnaround, greater control over production and reduced reliance on outsourced printing.
Pigment-Based Ink for Durable Prints
All six HP Vivid Photo Inks used by the Z6 are pigment-based.
Pigment ink technology provides enhanced resistance to water and fading compared with conventional dye-based printing systems, making the Z6 particularly well suited to professional graphics that need to retain their appearance over time.
This makes it a strong choice for both indoor display applications and appropriate outdoor applications when used with suitable media and finishing.
300 ml High-Capacity Ink Cartridges
The HP DesignJet Z6 uses HP 746 300 ml ink cartridges.
Large 300 ml cartridges help reduce cartridge changes during demanding production runs and are particularly beneficial for businesses producing large posters, photographic prints and graphics throughout the day.
Available colours include:
- HP 746 Cyan
- HP 746 Magenta
- HP 746 Yellow
- HP 746 Chromatic Red
- HP 746 Photo Black
- HP 746 Matte Black
Wide Range of Professional Media
The HP DesignJet Z6 supports a broad range of large-format media, allowing businesses to produce many different applications from one printer.
Compatible media categories include:
- Photographic paper
- Fine art printing material
- Bond paper
- Coated paper
- Heavyweight coated media
- Self-adhesive media
- Banner media
- Sign media
- Backlit media
- Presentation media
Recommended media weights range from approximately 80 to 500 gsm, while media thicknesses up to approximately 0.8 mm / 31.5 mil are supported.
This broad media compatibility gives users the flexibility to move from everyday presentation graphics to premium photographic and fine art applications.
Roll & Sheet Media Handling
The HP DesignJet Z6 44-inch supports both roll and sheet-fed media.
Finished output handling includes:
- Automatic roll feed
- Rear sheet feed
- Media output bin
- Automatic horizontal cutter
Roll widths from approximately 279 mm to 1118 mm are supported, with a maximum roll diameter of approximately 135 mm.
The automatic cutter trims compatible roll-fed output after printing, helping streamline production and reduce manual finishing.
Borderless Printing
The HP DesignJet Z6 supports borderless printing on selected media, allowing users to produce edge-to-edge graphics without unwanted white margins.
This is particularly useful for:
- Photography
- Posters
- Presentation graphics
- Retail displays
- Exhibition graphics
- Marketing materials
Borderless output can also reduce the amount of manual trimming required after printing.
Powerful Processing for Complex Files
High-resolution photographs, GIS maps and sophisticated graphic files can contain enormous amounts of data.
The HP DesignJet Z6 is equipped with:
128 GB virtual file-processing memory
and
500 GB self-encrypting internal storage
This powerful processing architecture allows the printer to handle demanding files internally and helps minimise production bottlenecks.
The Z6 is particularly well suited to complex files containing:
- High-resolution raster images
- Large PDFs
- Vector graphics
- Multiple layers
- Detailed maps
- Embedded fonts
- Transparency
- Complex colour information
HP Click – Simple Large Format Printing
HP Click simplifies large-format printing and makes the Z6 easier to use across a professional workgroup.
Users can submit and preview files before printing, helping identify potential layout or production problems before consuming media and ink.
HP Click helps users:
- Preview jobs before printing
- Submit multiple files
- Simplify job preparation
- Reduce incorrect prints
- Reduce wasted media
- Streamline large-format production
This is particularly useful in shared environments where not every employee is a large-format printing specialist.
HP SmartStream Support
For more demanding production environments, the HP DesignJet Z6 also supports HP SmartStream.
HP SmartStream provides a professional workflow solution designed to simplify job preparation and help operators efficiently process multiple large-format files.
For print service providers and high-volume graphics environments, SmartStream can provide additional control and productivity beyond conventional printer-driver workflows.
Professional Security
The HP DesignJet Z6 incorporates advanced security capabilities designed to help protect the printer, network and sensitive customer or business information.
Security features include:
- 500 GB self-encrypting internal drive
- Secure network communication
- Access control
- Secure device management
- HP Web Jetadmin
- HP JetAdvantage Security Manager
- Enterprise-oriented network security protocols
This makes the Z6 suitable for corporate, government, GIS and professional print environments where data security is an important consideration.
Flexible Connectivity
The HP DesignJet Z6 supports a wide range of professional printing workflows.
Connectivity and printing options include:
- Gigabit Ethernet
- Hi-Speed USB 2.0 for direct USB printing
- HP Click
- HP SmartStream
- Apple AirPrint
- Windows
- macOS
- Linux
- Chrome OS
- Android printing
- HP Smart App
This allows the Z6 to function as a central professional graphics printer for multiple users and departments.
Technical Specifications
| Specification | HP DesignJet Z6 44-inch PostScript Printer |
|---|---|
| Product Number | T8W16A |
| Printer Type | Professional Large Format Graphics Printer |
| Functions | |
| Maximum Print Width | 1118 mm / 44 inches |
| Print Technology | HP Thermal Inkjet |
| Maximum Resolution | Up to 2400 × 1200 optimised dpi |
| Fast Speed – Plain Media | Up to 80.5 m²/hr |
| Normal Speed – Coated Media | Up to 18.8 m²/hr |
| Best Speed – Glossy Media | Up to 9.7 m²/hr |
| Line Accuracy | ±0.1% |
| Ink System | 6 colours |
| Ink Type | Pigment-based HP Vivid Photo Inks |
| Ink Colours | Cyan, Magenta, Yellow, Chromatic Red, Photo Black, Matte Black |
| Ink Cartridge Capacity | 300 ml |
| Printheads | 3 universal printheads |
| Total Printhead Nozzles | 12,672 |
| Adobe PostScript | Adobe PostScript 3 |
| Adobe PDF | Adobe PDF 1.7 |
| Additional Print Languages | TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL |
| File-Processing Memory | 128 GB virtual |
| Internal Storage | 500 GB self-encrypting |
| Roll Configuration | Single Roll |
| Roll Width | 279–1118 mm |
| Maximum Roll Diameter | Approx. 135 mm |
| Custom Sheet Size | 210 × 279 to 1118 × 1676 mm |
| Recommended Media Weight | 80–500 gsm |
| Maximum Media Thickness | Up to 31.5 mil / approx. 0.8 mm |
| Media Handling | Roll feed, rear sheet feed, output bin, automatic horizontal cutter |
| Borderless Printing | Available on selected media |
| Standard Connectivity | Gigabit Ethernet |
| Direct USB Printing | Yes |
| HP Click | Supported |
| HP SmartStream | Supported |
| Dimensions (W × D × H) | Approx. 1802 × 695 × 998 mm |
| Printer Weight | Approx. 86 kg |
| Power Consumption | Less than 100 W while printing |
