Epson SureColor P20560 64" Professional Photo & Fine Art Printer

High-Performance 64" Production Printing with Exceptional Image Quality

The Epson SureColor P20560 is a professional 64-inch large-format production printer engineered for photographers, fine art reproduction studios, print service providers, graphic designers and commercial print businesses that demand outstanding image quality together with high production speed.

Combining Epson's advanced PrecisionCore™ Micro TFP printhead technology with the 12-colour UltraChrome® PRO12 pigment ink system, the SureColor P20560 delivers exceptional colour accuracy, smooth tonal gradations, impressive black density and highly detailed photographic output.

With a maximum print width of 64 inches (1,626 mm) and production speeds of up to 25 m²/hr, the P20560 provides an excellent balance between photographic quality and commercial productivity.

The printer also introduces a high-capacity ink pouch system with 800 ml and 1.6 litre ink options, helping reduce ink changes and improve workflow efficiency in busy production environments.

Key Features

• 64-inch / 1,626 mm maximum print width
• Advanced PrecisionCore™ Micro TFP printhead
• 12-colour UltraChrome® PRO12 aqueous pigment ink technology
• Maximum resolution of 2400 × 1200 dpi
• Variable Sized Droplet Technology (VSDT)
• Minimum ink droplet size of 3.5 picolitres
• 800 nozzles per colour
• High production speed of up to 25 m²/hr
• Large-capacity 800 ml or 1.6 L ink pouches
• Excellent colour accuracy and wide colour gamut
• Excellent photographic and fine art reproduction
• Roll and cut-sheet media support
• Media up to 1.5 mm thick with cut sheets
• Heavy-duty automatic rotary cutter
• Media Barcode System
• Automatic nozzle checking and cleaning
• Automatic printhead alignment
• 4.3-inch colour touchscreen
• USB 3.0 and Gigabit Ethernet connectivity
• Supplied with Epson Edge Print PRO
• Optional automatic take-up unit
• Optional PostScript module
• Optional 960 GB SSD
• Floor-standing professional production design

Exceptional 12-Colour UltraChrome PRO12 Ink Technology

At the heart of the SureColor P20560 is Epson's UltraChrome PRO12 aqueous pigment ink technology.

The sophisticated 12-colour ink configuration has been developed for professional photographic, fine art and commercial graphics applications where colour accuracy, tonal reproduction and image stability are critical.

The ink set incorporates:

• Photo Black
• Matte Black
• Cyan
• Vivid Magenta
• Yellow
• Light Cyan
• Vivid Light Magenta
• Grey
• Light Grey
• Dark Grey
• Orange
• Violet

The combination of Orange and Violet inks significantly expands the available colour gamut, while multiple grey inks provide improved neutral reproduction and exceptionally smooth transitions throughout monochrome images.

This makes the P20560 particularly well suited to demanding colour-critical applications including professional photography, exhibition printing, fine art reproduction, proofing and premium commercial graphics.

Outstanding Colour Accuracy

The Epson SureColor P20560 is designed for environments where colour accuracy is essential.

Its UltraChrome PRO12 ink technology provides an extremely wide colour gamut, including coverage of up to 99% of the Pantone® colour range, making the printer suitable not only for photography but also for colour-critical graphic design, proofing and commercial print applications.

Vivid Magenta helps reproduce vibrant pinks, blues and purples, while Orange and Violet inks extend the printer's ability to reproduce difficult colours that conventional ink systems may struggle to achieve.

The result is brilliant colour, excellent saturation and highly accurate reproduction across an exceptionally broad range of photographic and graphic applications.

Exceptional Black & White Photography

The SureColor P20560 is equally impressive when producing monochrome photography.

Multiple black and grey inks help produce:

• Deep, rich blacks
• Smooth grey transitions
• Excellent shadow detail
• Neutral monochrome output
• Reduced unwanted colour casts
• Improved tonal consistency
• Excellent highlight-to-shadow transitions

Improved Photo Black and Matte Black formulations provide enhanced Dmax, helping photographers produce prints with excellent contrast and an extended tonal range.

For professional portrait, landscape, architectural and fine art photographers, the P20560 provides the tonal control required for premium black-and-white reproduction.

PrecisionCore Micro TFP Printhead Technology

The SureColor P20560 incorporates Epson's advanced PrecisionCore Micro TFP printhead, designed to provide a combination of speed, precision and reliability.

The printer features 12 print channels with 800 nozzles per colour, allowing extremely precise ink placement across the full 64-inch print width.

Epson's Variable Sized Droplet Technology automatically controls ink droplet size according to the image being printed.

With droplets as small as 3.5 picolitres, the P20560 can reproduce extremely fine photographic details, subtle gradients and smooth areas of colour.

The printer supports a maximum resolution of 2400 × 1200 dpi.

Built for High-Volume Production

While image quality is a major strength of the P20560, Epson has also engineered the printer for commercial production environments.

Depending on print mode and media, rated print speeds include:

Print Mode	Resolution	Speed
Speed	300 × 600 dpi	Up to 25.00 m²/hr
Quality	600 × 600 dpi	Up to 18.18 m²/hr
High Quality	1200 × 600 dpi	Up to 10.46 m²/hr
Maximum Quality	2400 × 1200 dpi	Up to 5.60 m²/hr

Actual production speed will vary depending on media, image complexity, print mode, software, workflow and environmental conditions.

This range of print modes enables operators to choose the appropriate balance between production speed and image quality for each job.

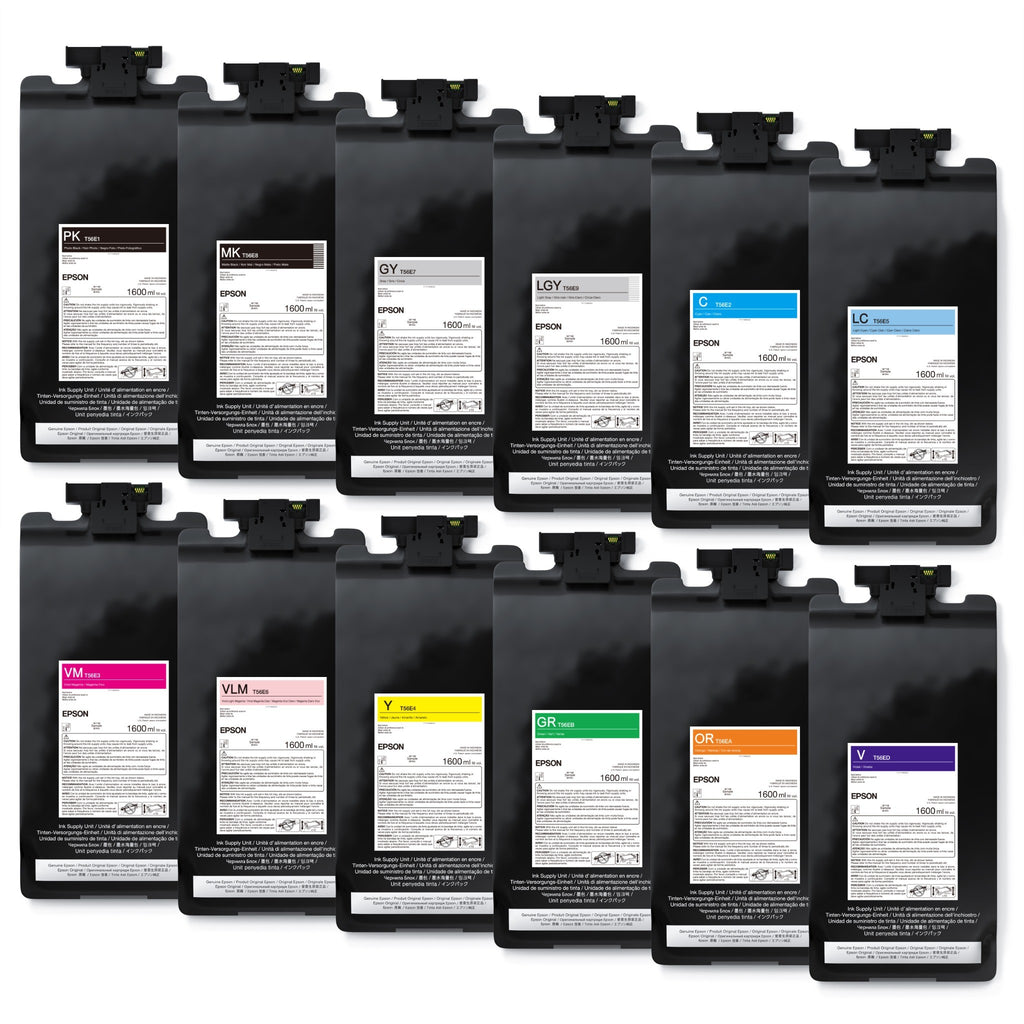

High-Capacity Ink Pouch System

The SureColor P20560 uses a high-capacity ink pouch system designed to support demanding commercial production.

UltraChrome PRO12 inks are available in capacities of up to 1.6 litres per colour, significantly reducing the frequency of ink replacement compared with conventional cartridge-based systems.

The larger ink capacity is particularly valuable for:

• High-volume photo labs
• Fine art production studios
• Print service providers
• Poster production
• Exhibition graphics
• Commercial photographic printing
• Businesses operating long production runs

Less frequent ink replacement means operators can spend more time printing and less time maintaining the machine.

Flexible 64-Inch Media Handling

With a maximum roll width of 1,626 mm / 64 inches, the SureColor P20560 provides considerable flexibility for professional print production.

The printer supports both roll media and cut sheets.

Roll Media

Roll media can range from approximately 254 mm to 1,626 mm wide, with roll diameters up to approximately 170 mm and a maximum roll weight of 24 kg.

Supported roll media thickness ranges from approximately:

0.08 mm to 0.5 mm

Cut Sheet Media

Cut sheets can be used up to 1,118 mm wide and approximately 1,580 mm long, depending on the media and operating conditions.

Cut-sheet media thickness can range from:

0.08 mm to 1.5 mm

This broad media compatibility allows businesses to produce output on a wide variety of photographic, fine art and graphic media.

Suitable Applications

The Epson SureColor P20560 is an excellent solution for producing:

Professional Photography

Produce premium-quality photographic prints with exceptional detail, colour accuracy and smooth tonal gradations.

Fine Art & Giclée Printing

Ideal for reproducing paintings, illustrations, digital artwork and limited-edition fine art prints on suitable fine art papers and canvas media.

Canvas Printing

The 64-inch print width provides excellent flexibility for producing large photographic and fine art canvas prints.

Exhibition & Gallery Prints

Produce large-format photographic work for galleries, museums, exhibitions and professional photographic displays.

Posters

The combination of 64-inch width and high production speed makes the P20560 suitable for premium-quality poster production.

Graphic Design & Colour-Critical Printing

The wide UltraChrome PRO12 colour gamut makes the printer suitable for graphic design studios and colour-critical production environments.

Proofing

High colour accuracy and extensive colour gamut make the printer suitable for professional proofing workflows where predictable colour reproduction is required.

Retail & Commercial Graphics

Produce premium promotional graphics, point-of-sale displays and high-quality indoor advertising material.

Heavy-Duty Automatic Cutter

An integrated heavy-duty rotary automatic cutter provides fast and accurate cutting of compatible roll media after printing.

This helps streamline production by reducing the amount of manual finishing required.

For continuous roll-to-roll production, an optional automatic take-up unit is also available.

This can be particularly useful for businesses producing long runs of posters, photographic prints or other roll-based graphics.

Intelligent Media Management

The P20560 incorporates Epson's Media Barcode System, helping operators manage roll media efficiently.

Media information can be stored and used to assist with roll identification and media management when rolls are removed and subsequently reloaded.

This feature is particularly useful in production environments where operators regularly switch between multiple paper, photographic and specialty media types.

Automated Printhead Maintenance

Maintaining consistent print quality is critical in professional production.

The SureColor P20560 incorporates a range of automated technologies including:

• Automatic nozzle checking
• Automatic nozzle cleaning
• Automatic printhead alignment
• Manual nozzle checking
• Ink-repelling printhead coating

These systems help reduce operator intervention while maintaining consistent output quality throughout production.

Epson Edge Print PRO Included

The SureColor P20560 is supplied with Epson Edge Print PRO, providing professional RIP and print-production functionality.

This helps businesses manage colour, media and production workflows from a professional print environment.

The printer is also compatible with a broad range of third-party design, production, workflow management and RIP solutions.

Additional Epson software solutions include Epson Print Layout, Epson Edge Dashboard, Epson Media Installer, Epson Edge Color and Epson Cloud Solution PORT, depending on operating system and software availability.

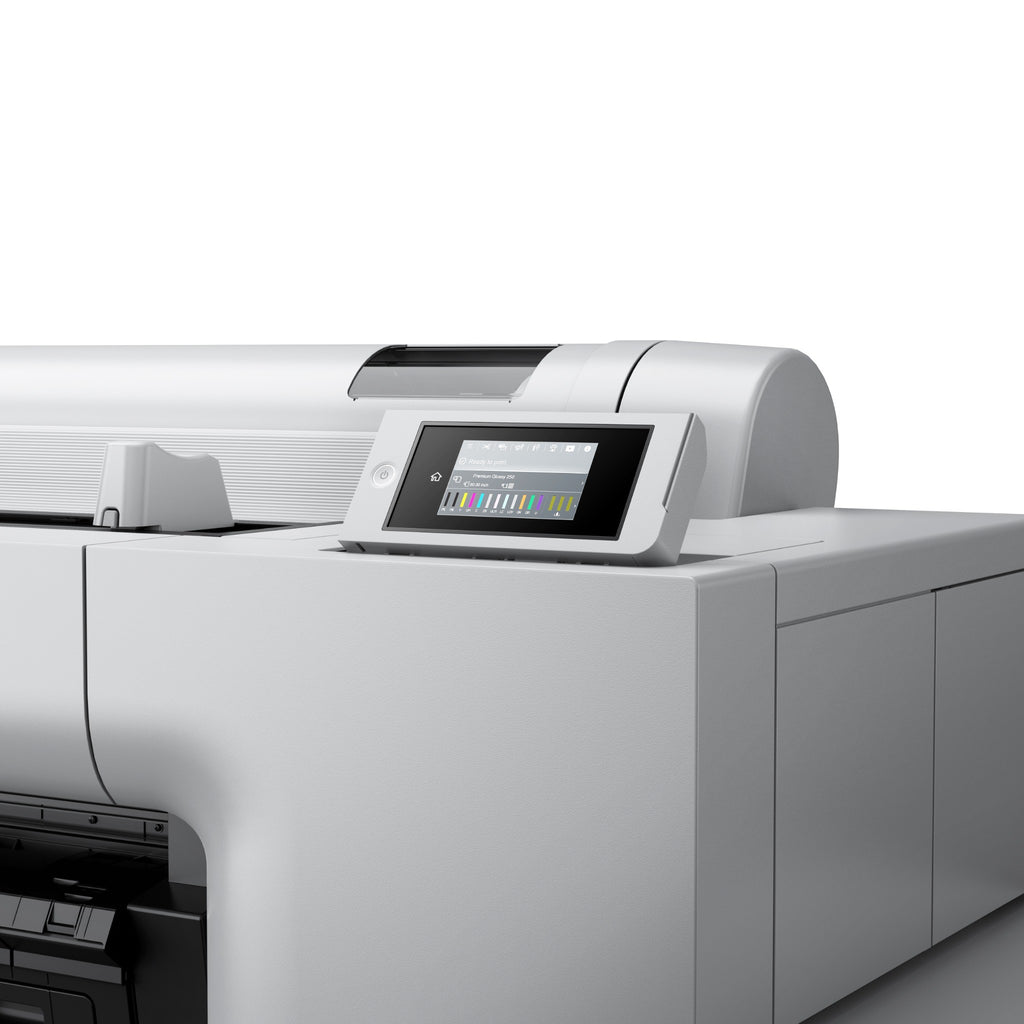

Easy Operation

A built-in 4.3-inch colour touchscreen LCD provides operators with convenient access to printer settings, media configuration, maintenance functions and printer status.

The interface has been designed to simplify day-to-day operation while giving production staff quick access to commonly used functions.

Professional Network Connectivity

The Epson SureColor P20560 supports:

• High-Speed USB 3.0
• 100Base-TX Ethernet
• 1000Base-T Gigabit Ethernet

Gigabit Ethernet connectivity makes the printer well suited to professional studios and production environments where large high-resolution photographic files are regularly transferred across a network.

Optional Automatic Take-Up Unit

For businesses requiring continuous roll-to-roll production, Epson offers an optional automatic take-up unit.

The take-up system is particularly useful for longer print runs and production environments where printed media needs to be collected efficiently after printing.

This can help improve unattended workflow and reduce manual handling of long prints.

Optional PostScript & SSD

The P20560 can be further configured for professional production workflows with optional accessories including:

• PostScript module
• 960 GB SSD
• Automatic take-up unit

These options allow businesses to configure the printer according to their specific workflow and production requirements.

Epson SureColor P20560 Technical Specifications

Specification	Epson SureColor P20560
Printer Type	Professional Photography, Fine Art & Graphics Printer
Maximum Print Width	64" / 1,626 mm
Printhead	PrecisionCore™ Micro TFP
Ink Technology	UltraChrome® PRO12
Ink Type	Aqueous all-pigment
Number of Colours	12
Ink Capacity	800 ml or 1.6 L pouches
Nozzles	800 per colour
Print Channels	12
Maximum Resolution	2400 × 1200 dpi
Minimum Droplet Size	3.5 pl
Maximum Rated Speed	Up to 25 m²/hr
Media	Roll and cut sheet
Maximum Roll Width	1,626 mm
Maximum Roll Diameter	170 mm
Maximum Roll Weight	24 kg
Roll Media Thickness	0.08–0.5 mm
Cut Sheet Thickness	0.08–1.5 mm
Cutter	Heavy-duty rotary automatic cutter
Display	4.3" colour touchscreen
USB	High-Speed USB 3.0
Network	100Base-TX / 1000Base-T Ethernet
Memory	6 GB
Included RIP	Epson Edge Print PRO
Optional Take-Up	Yes
Optional PostScript	Yes
Optional SSD	960 GB
Power Supply	100–240 V AC, 50–60 Hz
Operating Power	Approx. 95 W

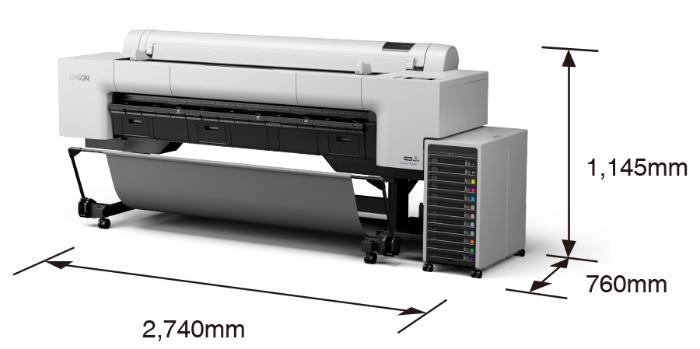

Printer Dimensions	2,740 × 760 × 1,145 mm (W × D × H)
Printer Weight	Approx. 224 kg without ink/media
