Epson SureColor P8560D 44-inch Dual Roll Commercial Photo & Graphics Printer

The Epson SureColor P8560D is a high-performance 44-inch (1118mm) professional large format printer designed for high-volume photography, posters, point-of-sale graphics, fine art and commercial print production.

Combining Epson's 2.64-inch PrecisionCore TFP printhead, UltraChrome PRO6 pigment ink technology, integrated dual-roll media handling and Adobe PostScript 3, the P8560D is built for businesses that need outstanding image quality together with fast, efficient production.

Its compact floor-standing design, front-loading media system and flexible roll handling make the P8560D particularly well suited to busy print shops, photographic labs, retail graphics operations and commercial production environments.

UltraChrome PRO6 6-Colour Pigment Ink System

The SureColor P8560D uses Epson's UltraChrome PRO6 all-pigment aqueous ink technology.

The six-colour ink configuration consists of:

• Photo Black
• Matte Black
• Cyan
• Magenta
• Yellow
• Grey

The combination of dedicated Photo Black and Matte Black inks provides excellent performance across photographic and matte media, while Grey ink improves tonal reproduction and smoothness in photographic images.

The P8560D accepts 350ml or 700ml ink cartridges, making the larger capacity particularly attractive for production environments with regular print volumes.

High-Speed PrecisionCore Printing

At the heart of the P8560D is Epson's 2.64-inch PrecisionCore TFP printhead, featuring 9,600 nozzles and a minimum droplet size of 3.5 picolitres.

The printer delivers resolutions up to 2400 × 1200 dpi, providing the combination of speed and precision required for professional photographic and commercial graphics production.

Built for High-Volume Production

The P8560D is designed to produce large-format work quickly.

Epson specifies a B0 plain-paper print time as fast as 35 seconds in Draft mode and 46 seconds in Speed mode. This makes the printer particularly attractive for businesses producing posters, promotional graphics and other large-format work where turnaround time matters.

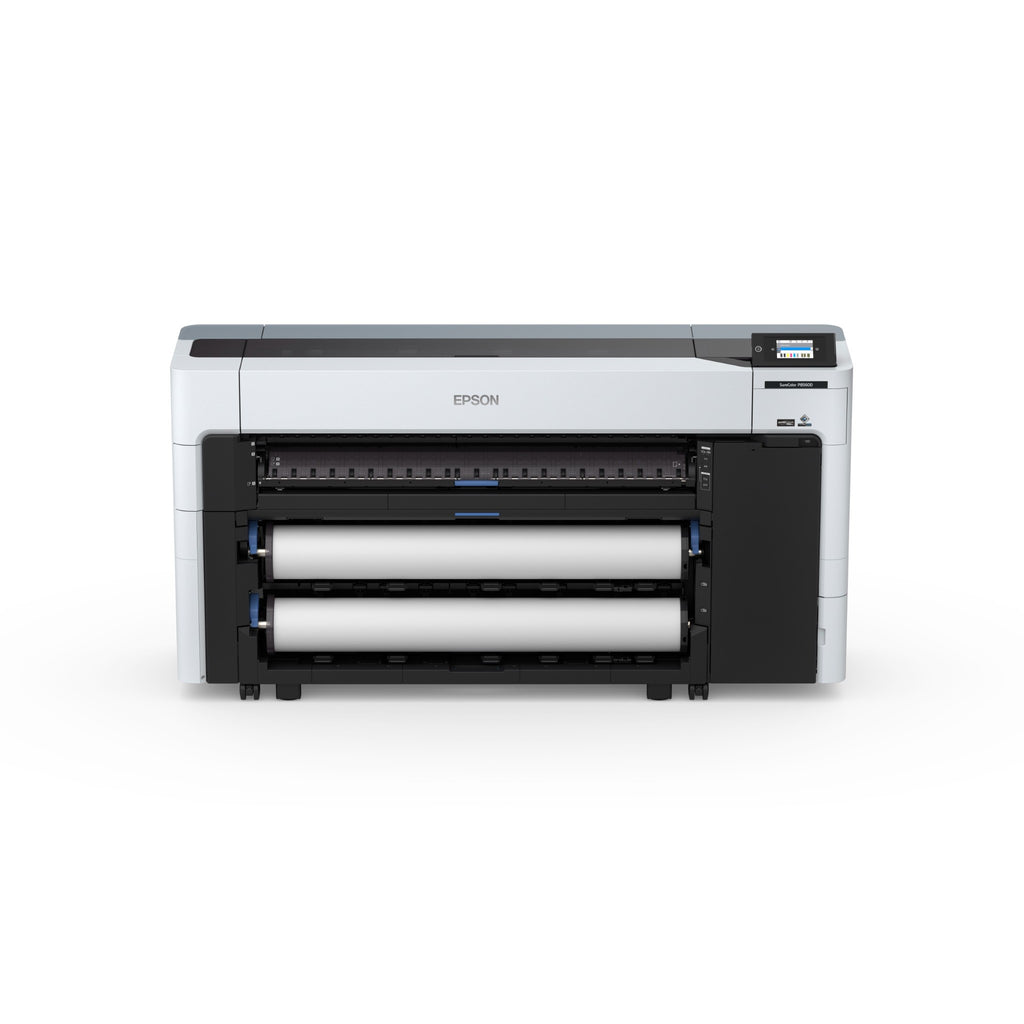

Integrated Dual-Roll System

One of the biggest advantages of the SureColor P8560D is its integrated dual-roll media system.

Two rolls can be loaded into the printer, helping operators switch between different media types or sizes without repeatedly removing and reloading rolls.

The second roll can alternatively be configured for automatic take-up, providing additional flexibility for roll-to-roll production.

This makes the P8560D particularly useful for print businesses handling multiple jobs throughout the day.

44-Inch / 1118mm Wide Printing

With a maximum print width of 44 inches (1118mm), the P8560D provides plenty of capacity for large photographic and commercial graphics applications.

Typical applications include:

• Professional photography
• Posters
• Retail POS graphics
• Promotional displays
• Fine art reproductions
• Exhibition graphics
• Presentation graphics
• Interior signage
• Short-run commercial graphics
• Corporate displays
• Proofs and presentation work

Flexible Roll, Sheet & Board Media Support

The P8560D offers excellent media flexibility.

It supports roll media from 254mm to 1118mm wide, single sheets from A4 through to B0, and front-loaded poster board up to 1.5mm thick.

An integrated rotary auto cutter further streamlines roll-media production.

This allows one printer to handle everything from photographic paper and presentation media to posters and rigid poster board.

Borderless Printing

The P8560D supports borderless printing across numerous standard roll widths, including popular 610mm, 914mm and full 1118mm widths.

Borderless capability can reduce finishing requirements when producing photographs, posters and presentation graphics.

Integrated Adobe PostScript 3

The SureColor P8560D includes Adobe PostScript Level 3, helping simplify professional PDF and graphics workflows.

This is particularly valuable for commercial print shops, corporate print rooms and graphic production environments regularly working with complex PDF, Adobe and design files.

Direct USB Printing

A convenient front-panel USB port enables compatible PDF, JPEG and TIFF files to be printed directly from a USB drive.

For straightforward production jobs, operators can therefore output files without always needing to send them from a dedicated workstation.

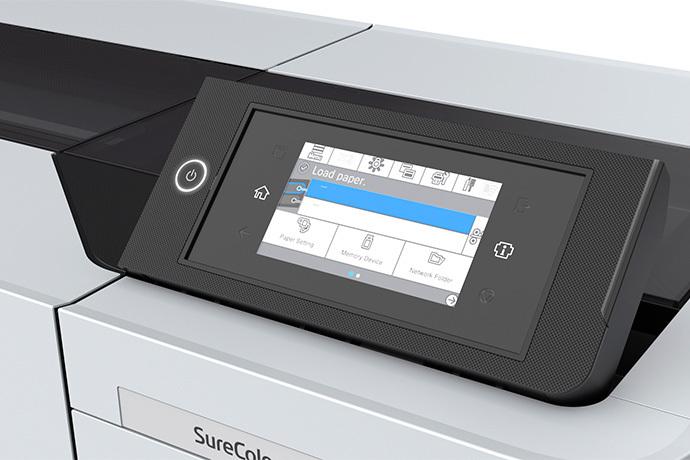

4.3-Inch Colour Touchscreen

The P8560D features a 4.3-inch colour LCD touchscreen that provides easy access to printer settings, media information and operating functions.

The interface helps simplify everyday operation and makes it easier for production staff to monitor and manage jobs.

Advanced Connectivity

The SureColor P8560D provides flexible connectivity for modern production environments, including:

• USB 3.0
• Gigabit Ethernet
• Wi-Fi
• Wi-Fi Direct

This allows the printer to be integrated into individual workstations or shared network environments.

Optional 960GB SSD

For businesses requiring additional job storage and workflow flexibility, Epson offers an optional 960GB SSD.

This can be particularly useful in busy commercial environments where multiple large print jobs are regularly processed.

Compact Professional Design

Despite its 44-inch printing capability, the P8560D has been engineered with a relatively compact floor-standing design.

Front-loaded roll media and an integrated media basket help reduce the amount of operational space required around the printer.

The printer measures approximately 1848mm wide × 499mm deep × 975mm high before allowing for operating space.

Ideal for Commercial Print Production

The Epson SureColor P8560D is particularly well suited to:

Print & Copy Shops
Produce posters, promotional graphics, photographic prints and presentation work quickly and efficiently.

Professional Photo Labs
Create large photographic prints with smooth tonal reproduction and dependable pigment ink technology.

Retail & POS Production
Produce high-impact posters, promotional displays and point-of-sale graphics.

Corporate Print Rooms
Handle presentations, posters, graphics and internal promotional materials from a versatile 44-inch platform.

Photography & Fine Art Studios
Produce professional photographic and art prints across a wide range of compatible media.

High-Volume Production Environments
Take advantage of dual-roll loading, large ink cartridges and high-speed PrecisionCore printing to minimise operator intervention.

Key Features

• 44-inch / 1118mm maximum print width
• Integrated dual-roll media system
• Second roll can be configured for auto take-up
• Epson 2.64-inch PrecisionCore TFP printhead
• UltraChrome PRO6 6-colour pigment ink
• Photo Black and Matte Black inks
• Grey ink for improved photographic tonal reproduction
• 350ml or 700ml ink cartridges
• Maximum 2400 × 1200 dpi resolution
• B0 plain-paper printing as fast as 35 seconds in Draft mode
• Roll, sheet and poster-board media support
• Media thickness up to 1.5mm for front-loaded poster board
• Integrated automatic rotary cutter
• Borderless printing on multiple media widths
• Integrated Adobe PostScript Level 3
• 4.3-inch colour touchscreen
• Direct PDF, JPEG and TIFF printing via USB
• USB 3.0, Ethernet, Wi-Fi and Wi-Fi Direct
• Integrated media basket
• Optional 960GB SSD
• Compact floor-standing design

Why Choose the Epson SureColor P8560D?

The Epson SureColor P8560D is designed for businesses that need to combine large-format image quality with serious production efficiency.

Its 44-inch printing width, fast PrecisionCore printhead, UltraChrome PRO6 pigment inks and dual-roll media system make it particularly effective for high-volume poster, photographic and commercial graphics production.

Unlike Epson's 12-colour P9560, which is more heavily focused on maximum photographic colour gamut and colour-critical fine art work, the P8560D prioritises productivity and efficient media handling with its 6-colour system and dual-roll configuration.

Epson SureColor P8560D – Fast, Flexible 44-Inch Dual Roll Production

For print shops, photo labs and commercial graphics businesses requiring a dependable 44-inch dual-roll printer, the Epson SureColor P8560D provides an excellent combination of speed, image quality, media flexibility and production efficiency.

Its dual-roll system, 700ml maximum ink capacity, integrated PostScript and compact design make it a powerful solution for demanding day-to-day large-format production.
