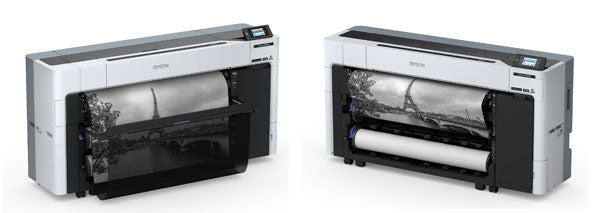

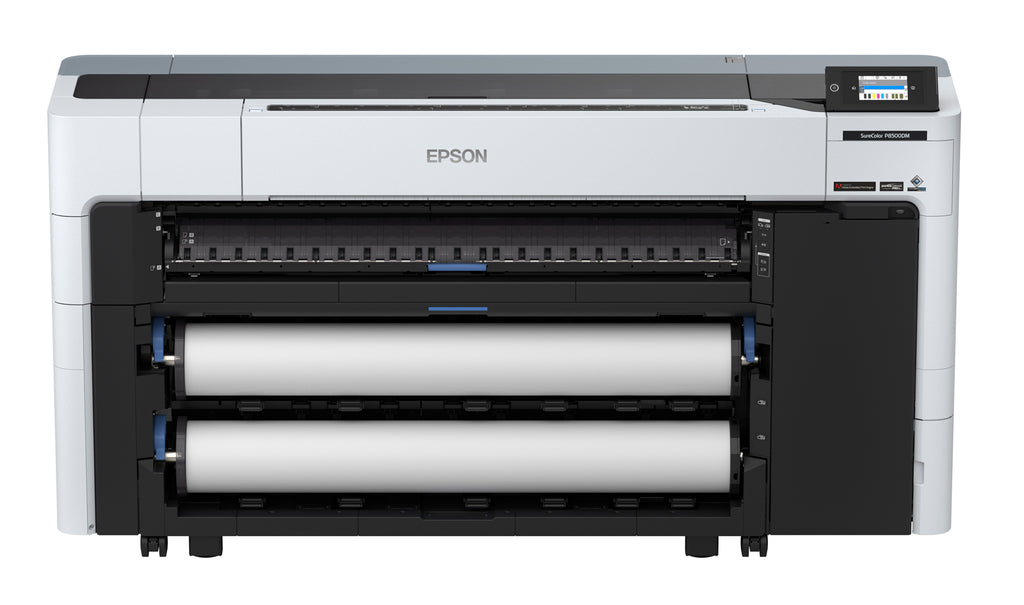

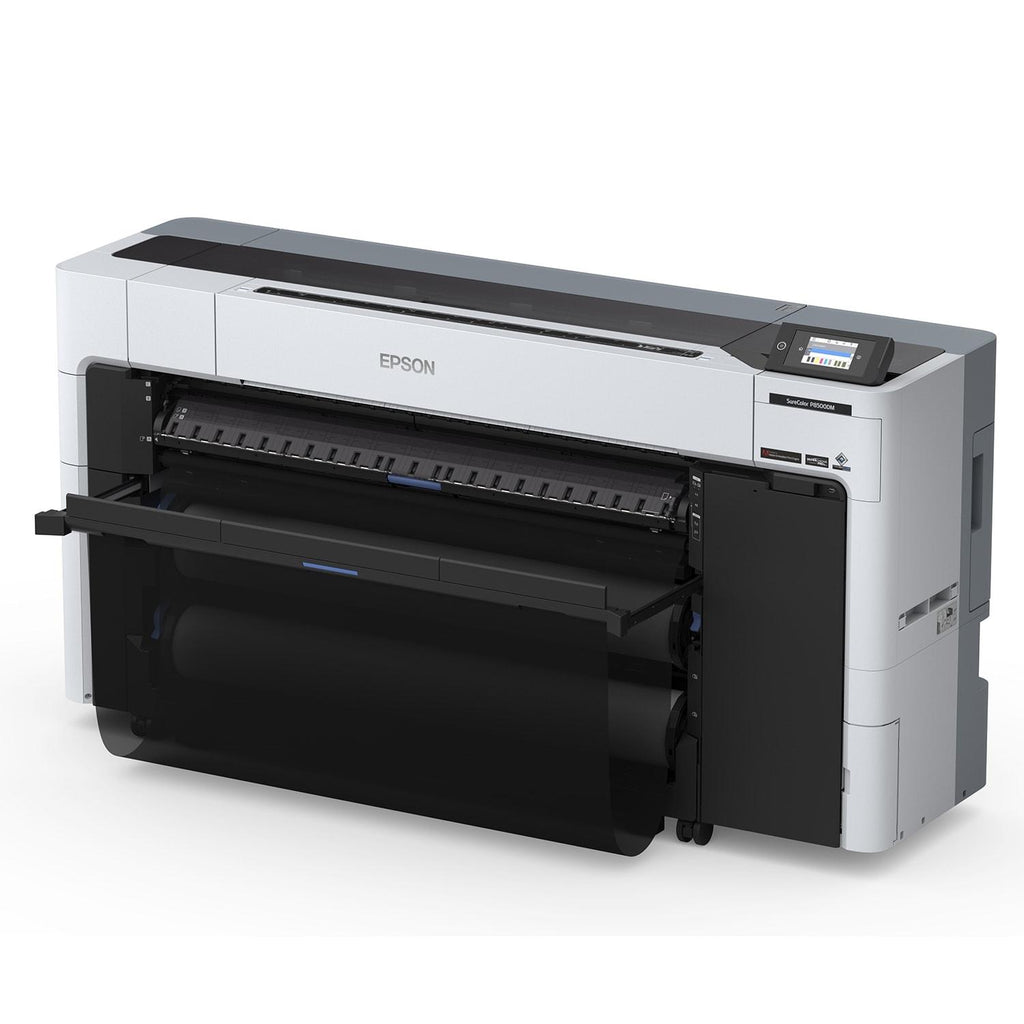

Epson SureColor P8560DM 44-inch Dual Roll Multifunction Photo & Graphics Printer

The Epson SureColor P8560DM is a professional 44-inch (1118mm) large-format multifunction printer combining high-speed colour printing with an integrated 36-inch large-format scanner for convenient print, scan and copy workflows.

Designed for commercial print shops, photographic production, retail graphics, corporate print rooms and other busy environments, the P8560DM combines Epson's 2.64-inch PrecisionCore TFP printhead, UltraChrome PRO6 pigment ink, dual-roll media handling, integrated Adobe PostScript 3 and a 960GB SSD in one compact production system.

Professional 44-Inch Printing with Integrated Scanning

Unlike the standard P8560D, the P8560DM adds an integrated large-format scanner, turning the printer into a complete multifunction production system.

Businesses can use one machine to:

• Print
• Scan
• Copy
• Enlarge or reduce originals
• Digitise large-format documents
• Scan directly into common file formats

This makes the P8560DM particularly useful for businesses that regularly need to reproduce existing posters, plans, photographs, graphics and other large-format originals.

UltraChrome PRO6 Pigment Ink Technology

The SureColor P8560DM uses Epson's professional UltraChrome PRO6 all-pigment aqueous ink system.

The six-colour configuration consists of:

• Photo Black
• Matte Black
• Cyan
• Magenta
• Yellow
• Grey

The combination of dedicated Photo Black and Matte Black inks provides flexibility across photographic and matte media, while Grey ink assists with smooth tonal reproduction and professional photographic output.

The P8560DM accepts 350ml or 700ml ink cartridges, making the larger cartridges particularly suitable for regular commercial production.

PrecisionCore TFP Printhead

At the heart of the P8560DM is Epson's 2.64-inch PrecisionCore TFP printhead.

The printhead incorporates 9,600 nozzles and supports variable-sized ink droplets down to just 3.5 picolitres.

With a maximum resolution of 2400 × 1200 dpi, the printer is capable of producing detailed photographs, sharp graphics, smooth gradients and precise text while maintaining the production speeds required by commercial environments.

Fast Commercial Print Production

The SureColor P8560DM is designed for productive large-format printing.

Epson specifies B0 plain-paper print times as fast as:

• 35 seconds – Draft
• 46 seconds – Speed
• 258 seconds – Quality

On B0 photographic paper, Epson specifies print times starting from approximately 152 seconds in Speed mode, depending on the selected settings and media.

This combination of quality and speed makes the P8560DM suitable for busy environments producing posters, photographic prints, graphics and promotional material throughout the day.

Integrated 36-Inch Large Format Scanner

One of the defining features of the P8560DM is its integrated 36-inch scanner.

The scanner uses Contact Image Sensor (CIS) technology with RGB filters and a dual-white-LED light source. Maximum scanning resolution is 600 dpi.

The scanner supports documents up to 914mm wide, allowing businesses to digitise a wide variety of large-format originals without requiring a separate standalone scanner.

Fast Colour & Monochrome Scanning

The P8560DM's scanner is designed for productive commercial workflows.

Epson specifies scanning speeds of up to:

• 11.43cm/sec (4.5 ips) in colour
• 25.4cm/sec (10 ips) in monochrome

For Epson's specified A1 test document, feed times are approximately 38 seconds for monochrome and 44 seconds for colour at 200 dpi, although actual workflow time will vary according to the original, processing and selected settings.

Flexible Scan & Copy Functions

The integrated scanner supports a range of document types, including:

• Line and text drawings
• Blueprints
• Inverted blueprints
• Tracing paper
• Posters
• Plain paper
• Matte paper
• Glossy paper
• Film
• Newspaper

Scans can be saved in formats including:

• JPEG
• PDF
• Encrypted PDF
• PDF/A
• TIFF

The copier supports 1–99 copies and scaling from 25% to 755%, together with Auto Fit functionality.

Integrated Dual-Roll Media System

The P8560DM features Epson's dual-roll front-loading media system.

Two rolls can be loaded simultaneously, allowing operators to keep different media types or widths ready for production.

This can substantially reduce the amount of manual roll changing required during a busy working day.

Alternatively, the second roll can be configured as an automatic take-up unit (ATU) for roll-to-roll production.

44-Inch / 1118mm Maximum Print Width

The SureColor P8560DM supports print media up to 44 inches / 1118mm wide.

This makes it suitable for applications including:

• Professional photography
• Posters
• Retail POS graphics
• Promotional displays
• Interior graphics
• Exhibition graphics
• Presentation graphics
• Corporate graphics
• Fine art reproduction
• Short-run commercial graphics
• Large-format copying
• Document scanning and archiving

Extensive Media Support

The P8560DM provides excellent media flexibility.

Roll media from 254mm to 1118mm wide is supported, with media thickness from approximately 0.07mm to 0.8mm.

Individual sheets from A4 through B0 can also be loaded, while front-loaded poster board from 0.8mm to 1.5mm thick is supported.

An integrated rotary automatic cutter further streamlines roll-media production.

Borderless Printing

The P8560DM supports borderless printing across a broad range of standard media widths, including popular 24-inch, 36-inch and full 44-inch / 1118mm widths.

This can reduce trimming and finishing requirements when producing photographic prints, posters and presentation graphics.

Integrated Adobe PostScript 3

Professional PDF and graphics workflows are supported through integrated Adobe PostScript Level 3.

The printer also supports ESC/P Raster, HP-GL/2 and HP-RTL control languages, helping the P8560DM integrate into a variety of professional production environments.

Integrated 960GB SSD

The SureColor P8560DM includes an integrated 960GB SSD together with its onboard memory and PostScript hardware.

The substantial internal storage capacity is particularly valuable when processing large print files and managing demanding commercial production workflows.

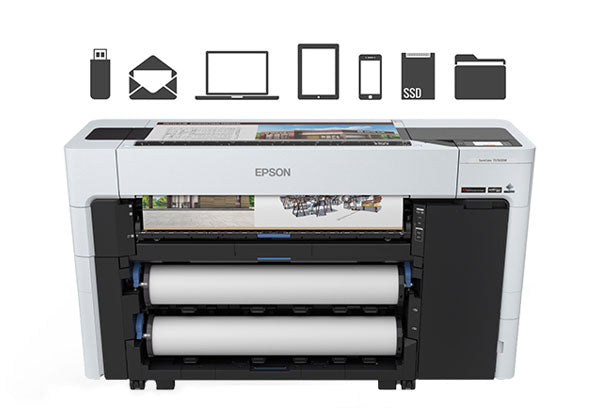

Direct USB Printing

A convenient front-panel USB slot allows operators to print compatible files directly from a USB drive.

Supported direct-print formats include:

• PDF
• JPEG
• TIFF

This can simplify straightforward production jobs by removing the need to send every file through a workstation.

4.3-Inch Colour Touchscreen

The P8560DM features a 4.3-inch colour LCD touchscreen that provides convenient access to printing, scanning, copying, media and machine settings.

The integrated interface helps simplify everyday operation for production staff working across different jobs.

Advanced Connectivity

The Epson SureColor P8560DM provides comprehensive connectivity, including:

• USB 3.0
• Gigabit Ethernet
• Wi-Fi
• Wi-Fi Direct

This allows the printer to operate as a dedicated production machine or as a shared multifunction device accessible across a business network.

Compact Multifunction Design

Despite combining a 44-inch printer, dual-roll media system and 36-inch scanner, the P8560DM maintains a relatively compact floor-standing footprint.

The printer measures approximately:

1848mm W × 499mm D × 975mm H

and weighs approximately 166kg without ink, media or options.

Integrating scanning into the printer can also eliminate the floor space that would otherwise be required for a separate large-format scanner.

Ideal for Commercial Print & Copy Businesses

The Epson SureColor P8560DM is particularly well suited to:

Commercial Print Shops
Print, scan and reproduce posters, graphics, photographs and customer-supplied originals from one integrated system.

Copy & Reprographic Centres
Digitise and reproduce large-format documents while offering enlargement, reduction and copying services.

Professional Photo & Graphics Production
Produce high-quality photographic and promotional graphics using Epson UltraChrome PRO6 pigment inks.

Retail & POS Production
Create promotional posters, retail displays and point-of-sale graphics quickly and efficiently.

Corporate Print Rooms
Handle printing, scanning, copying and archiving requirements from one professional large-format machine.

Design & Production Studios
Scan existing artwork and documents while producing large-format proofs, presentations and finished graphics.

Key Features

• 44-inch / 1118mm maximum print width
• Integrated 36-inch / 914mm large-format scanner
• Print, scan and copy functionality
• 600 dpi maximum scanning resolution
• CIS scanner with RGB filters
• Dual-white-LED scanner illumination
• Up to 11.43cm/sec colour scanning
• Up to 25.4cm/sec monochrome scanning
• JPEG, PDF, encrypted PDF, PDF/A and TIFF scanning
• Copy scaling from 25% to 755%
• Epson UltraChrome PRO6 pigment ink
• Six-colour ink configuration
• 350ml or 700ml ink cartridges
• Photo Black and Matte Black
• Grey ink for improved tonal reproduction
• 2.64-inch PrecisionCore TFP printhead
• 9,600 nozzles
• 3.5pl minimum droplet size
• Maximum 2400 × 1200 dpi print resolution
• B0 plain-paper printing as fast as 35 seconds
• Integrated dual-roll media system
• Second roll can function as an automatic take-up unit
• Roll, sheet and poster-board media support
• Poster board support up to 1.5mm thick
• Automatic rotary cutter
• Multiple borderless print widths
• Adobe PostScript Level 3
• Integrated 960GB SSD
• 4.3-inch colour LCD touchscreen
• Direct PDF, JPEG and TIFF printing from USB
• USB 3.0, Gigabit Ethernet, Wi-Fi and Wi-Fi Direct
• Integrated media basket
• Barcode roll-media management

P8560DM vs P8560D vs P8560DL

The three P8560 models are designed around similar high-production 44-inch printing requirements, but each is optimised for a different workflow.

The P8560D is the standard dual-roll production printer using 350ml or 700ml cartridges.

The P8560DL is aimed at higher ink-volume environments and uses large 1.6-litre ink pouches.

The P8560DM adds an integrated 36-inch scanner, providing print, scan and copy functionality while retaining the 350ml/700ml cartridge system, dual-roll printing and UltraChrome PRO6 ink technology.

For businesses that regularly need both large-format printing and scanning, the P8560DM is the most versatile multifunction configuration of the three.

Why Choose the Epson SureColor P8560DM?

The Epson SureColor P8560DM combines three important production capabilities—printing, scanning and copying—in a single professional 44-inch platform.

Its high-speed PrecisionCore printhead and UltraChrome PRO6 pigment ink system provide dependable professional output, while dual-roll media handling improves productivity when switching between different jobs.

The integrated 36-inch scanner adds substantial versatility for businesses that need to digitise, reproduce, enlarge or archive existing large-format originals.

Combined with Adobe PostScript 3, a 960GB SSD and comprehensive network connectivity, the P8560DM is an excellent solution for busy commercial print and graphics environments.

Epson SureColor P8560DM – 44-Inch Print, Scan & Copy Production

Print professional photographs, posters and graphics while adding high-speed large-format scanning and copying to your workflow.

The Epson SureColor P8560DM 44-inch Multifunction Printer provides a powerful all-in-one solution for commercial print shops, copy centres and businesses requiring productive large-format printing combined with integrated scanning.
